1. Step 1: assess the entrance risk level
Vehicle entrance security design starts with risk assessment. Clarify three questions: site nature (government, business park or residential), threat level (crash resistance or concealment prevention), and traffic volume (high-frequency release or low-frequency control).
Entrances generally fall into three risk levels: standard (commercial/residential — accidental ram prevention), key (government/park — physical interception + inspection), and high-risk (prison/military/border — maximum interception with multi-layer verification). The level sets the minimum equipment configuration.
2. Step 2: physical interception equipment selection logic

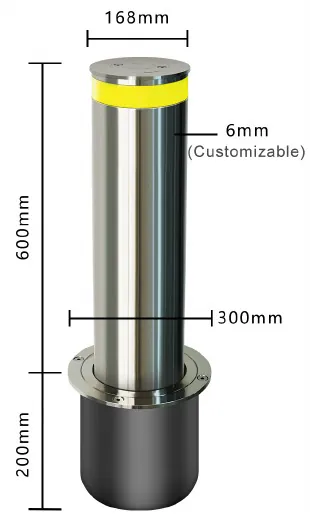

Physical interception answers "whether a vehicle may enter". Three main types: rising bollards suit daily high-frequency control — raised to intercept, lowered to release, balancing efficiency and safety; road blockers (flap/traveling) suit maximum-level interception, MPS crash-test certified to stop high-speed ramming vehicles; tire killers offer the most flexible compromise — invisible in peacetime, instant deflation when needed.
The recommended combination is "bollards for daily control + road blockers for emergencies + fixed crash columns for edges", forming tiered defense. Choose bollards and blockers by crash-test certification level — never by appearance or price alone.
- Standard: automatic/semi-automatic bollards + fixed crash columns
- Key: high-pressure automatic bollards + under-vehicle inspection + plate recognition
- High-risk: hydraulic flap road blocker + tire killer + bollards + under-vehicle inspection + micro-vibration detection
3. Step 3: inspection equipment configuration
Inspection equipment answers "whether the vehicle carries a problem". The under-vehicle inspection system is the core: vehicles pass at 1–120km/h and the entire underbody is imaged in 1 second, detecting objects ≥2mm — replacing manual crouching checks.
For personnel lanes, configure security gates (metal/phone/temperature) and handheld detectors; for luggage, X-ray scanners. Inspection equipment must link with physical interception: anomaly detected → bollards stay raised → vehicle directed to the re-check area.
4. Step 4: system linkage design
Siloed devices are the main reason vehicle entrance projects fail. A smart control system unifies bollards, barrier arms, under-vehicle inspection and plate recognition: plate authorized + underbody clean → auto release; any anomaly → auto intercept with alarm.
Linkage must include power-loss fallback: bollards lower and arms raise automatically on power loss so lanes stay usable. Records (plates, images, release logs) must be fully retained for traceability.
5. Budget and phased implementation
A complete solution is a significant investment; phase it: Phase 1 — physical interception (bollards + fixed columns) and basic signage for rapid protection; Phase 2 — under-vehicle inspection and plate recognition for automated checks; Phase 3 — connect the smart security inspection platform for remote control and data analytics.
SECUGUARD provides one-stop service from survey and design to turnkey delivery, with unified warranty and after-sales across all equipment — avoiding multi-vendor management overhead.
6. Implementation process: from survey to acceptance
Six standard steps: 1) on-site survey — confirm lane width, road structure, power and utilities, issue a survey report; 2) solution design — equipment list, point plan and construction drawings, reviewed by both parties; 3) civil works — excavate, embed, pour per drawings with cabling in parallel; 4) installation and joint commissioning — install and test each device plus linkage logic; 5) trial operation — observe peak-period performance, fix issues; 6) acceptance and delivery — operator training and document handover.
Schedule reference: single-lane bollard + under-vehicle inspection combination takes about 3–5 working days for civil works and installation; platform projects add 1–2 weeks for software deployment and data initialization. Weather, road structure and approvals affect schedules — reserve 20% buffer.
7. Common selection pitfalls and avoidance guide
Pitfall 1: price over certification. Crash-protection equipment must have MPS vehicle crash test certification — uncertified low-price products are useless under real impact. Pitfall 2: ignoring power-loss emergency. Bollards without EPS or manual lowering can lock lanes on power loss — always test the emergency function.
Pitfall 3: isolated devices. Non-linked, offline devices depend on human guarding, crippling efficiency and traceability — plan interfaces and platforms at selection stage. Pitfall 4: ignoring drainage and foundation. Substandard ground work is the #1 cause of later faults — civil works must be built and accepted per code.
Avoidance checklist: request third-party test reports; require live or video demonstrations; state warranty and response terms explicitly; keep hidden-work photo records; confirm spare-parts supply channels. With these five items done, procurement risk is under control.
8. Risk assessment: from threats to protection levels
Protection design starts with risk assessment: 1) identify threats (vehicle ramming, concealed items, illegal entry, terrorism); 2) assess exposure (traffic volume, entrance count, surroundings, site nature); 3) determine risk level (low/medium/high/extreme).
The level sets the protection floor: low risk (ordinary commercial) — bollards + signage; medium (government/park) — add under-vehicle inspection and plate recognition; high (prison/nuclear) — road blockers + under-vehicle inspection + micro-vibration detection + crash-test certification; extreme (national key facilities) — special-standard design with regular drills.
Assessment is not one-time: re-evaluate when site nature or surroundings change, or before major events, and adjust protection dynamically.
9. Security management records and continuous improvement
Maintain complete records: vehicle passage logs (plate, time, check result), anomaly events (alarm, intercept, re-check), equipment maintenance records (inspection, repair, replacement), and drill records (time, scenario, issues, improvements). Digitized records are a basic platform feature; paper records should also be properly archived.
Continuous improvement: monthly aggregation of anomalies and faults with trend analysis (time-of-day patterns? frequently failing devices?); quarterly effectiveness reviews updating the plan against new threats; annual full risk re-assessment. Records are not for inspectors — they are the foundational data of security management.
10. Technical linkage in detail: from single machines to systems
The complete linkage chain: plate recognition (identity) → under-vehicle inspection (concealment) → micro-vibration detection (hidden persons) → bollards/road blockers (physical execution) → management platform (records and dispatch). Three linkage logics: serial release (release only if all pass), parallel checks (multi-lane simultaneous), and conditional interception (any anomaly intercepts).
Three things matter when implementing: unified interface protocols (dry contacts, RS485, network confirmed in advance); linkage timing design (devices respond at different speeds — leave buffer to avoid misjudgment); power-loss fallback (each device remains usable independently after system power loss). Linkage is not a feature list — it is a timing-verified reliable process.
11. FAQ
Q: Must inspection and interception equipment be purchased together? A: They can be phased, but interfaces and linkage conditions must be reserved at design time — retrofitting later costs far more. Q: How do plate recognition and under-vehicle data associate? A: Via timestamp and lane ID; the platform auto-binds plate and image, searchable by plate.
Q: What about false alarms? A: Rule out environment first (ground debris, EMI), then adjust trigger sensitivity and whitelist policies; analyze false-alarm root causes to prevent staff desensitization. Q: How to manage multiple entrances? A: Sites run independently, the central platform aggregates, and data access is role-based.
