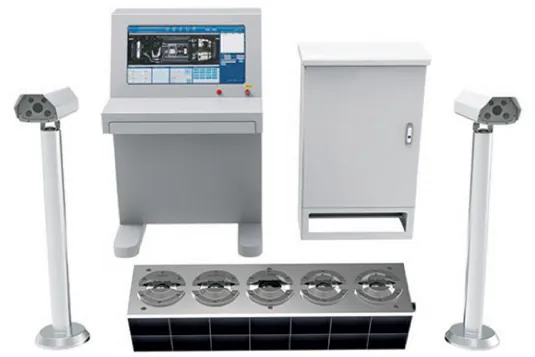

1. The working principle of under-vehicle inspection systems
Under-vehicle inspection systems use digital line-scan cameras: as the vehicle passes, the linear sensor scans the underbody line by line at extreme speed, stitching a complete image of the entire underside. Unlike area-array cameras, line scanning produces undistorted, unblurred images even at high speed.
Scanning is triggered by loop detectors or plate recognition, with imaging time ≤1 second. After software enhancement, objects ≥2mm in diameter are clearly visible — this indicator directly determines the system's detection capability.
2. Five core indicators explained
Resolution: determines image detail; mainstream products offer 12000×7500 — higher resolution means clearer small objects. Detectable object size: the industry standard is ≥2mm diameter — do not buy below this. Vehicle speed: 1–120km/h coverage suits both fast-check lanes and slow detailed scans. Load rating: the scanner is embedded in the road and must withstand traffic — 80T dynamic pressure and 100T static load are reliable levels. Protection: IP68 means dust-proof and immersion-proof, meeting all-weather outdoor operation.
3. Trigger modes and linkage design
Loop detector triggering is the most stable — automatic scanning on vehicle arrival; plate-recognition triggering auto-associates vehicle information; RFID triggering suits fast release of internal vehicles. Multiple trigger modes can run in parallel, switched by scenario.

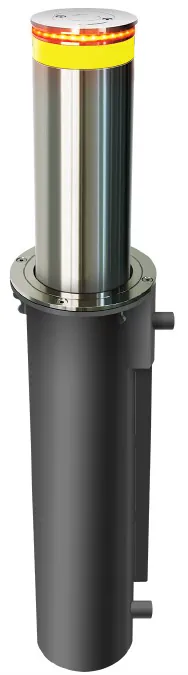

The system should link with bollards, road blockers and barrier arms: pass = auto release, anomaly = auto intercept. Multi-site networking enables centralized management and remote image retrieval — a must for multi-entrance sites.
4. Fixed, mobile or portable: which to choose
Fixed: embedded installation for permanent checkpoints, fully automatic all-weather operation — the mainstream form. Mobile: no civil works, deployed in 30 minutes — ideal for major events and temporary checkpoints. Portable: single-operator hand-held, instant scanning — for patrols and random checks. Combine per scenario; all three share one management software.
5. Deployment and construction essentials
Fixed units require road slotting and embedment — pay attention to drainage design (water pooling), cable protection and compacted backfill; reserve detection width (≤4500mm covers mainstream vehicles) on both sides of the scanner. Construction quality directly affects lifespan and imaging — manufacturer-guided or manufacturer-provided installation is recommended.
6. How to verify imaging quality on site
At demonstration, verify three dimensions: 1) resolution detail — attach a 2mm-diameter wire under a vehicle and pass through; the image must show it clearly; 2) distortion and stitching — after a standard-wheelbase vehicle passes, the full underbody image must be continuous with no misalignment; 3) environmental adaptability — test in rain, at night (fill lights on) and in backlight, focusing on dark detail and glare control.
Also verify trigger reliability: pass vehicles at 5km/h and 60km/h, five runs each — trigger success must be 100%; whitelist vs. external vehicle logic must work correctly. Ask for a visit to installed sites of the same model or video evidence — seeing is believing.
7. Multi-site networking and centralized management
Offices, parks and prisons often have multiple entrances or checkpoints. Use a two-tier "site + center" architecture: each site deploys local inspection terminals and storage; the center deploys the management platform, aggregating data over dedicated lines or VPN. The center supports real-time image retrieval, historical search, device status monitoring and alarm aggregation.
Networking essentials: NTP time sync between sites for consistent record ordering; encrypted image transmission; rolling central storage by retention policy; tiered permissions with operation trails. Networking greatly improves O&M efficiency — most faults can be diagnosed remotely without travel.
8. Fixed vs. mobile vs. portable: selection comparison
The three forms have different roles: fixed suits permanent high-frequency checkpoints, all-weather automatic, one unit per lane; mobile suits temporary checkpoints, major events and multi-point rotation — no civil works, 30-minute deployment; portable suits single-operator mobile checks — zero construction, anytime anywhere.
Projects with adequate budget combine them: fixed for permanent posts, mobile for temporary missions, portable issued to patrol teams. All three share the same inspection standards and image formats, unified by the management platform — a complete "fixed + mobile + individual" inspection system.
9. Technology evolution trends and outlook
Under-vehicle inspection is evolving in three directions: 1) intelligent imaging — AI image recognition auto-flags abnormal areas (modifications, concealment, illegal attachments), moving from "manual review" to "AI initial screening + human review"; 2) networked data — inspection data fuses with plate, face and gate systems into a vehicle life-cycle profile; 3) lightweight hardware — smaller scan components and lower power bring near-fixed imaging quality to mobile and portable units.
For buyers: prioritize products that support AI upgrades and platform integration to avoid being outdated at delivery; assess the vendor's ongoing R&D and software update mechanism; pilot "fixed + AI recognition" combinations before scaling.
10. Common parameter misconceptions clarified
Misconception 1: "higher resolution is always better". Resolution is the baseline, but imaging quality depends more on sensor quality, lens distortion control and fill-light design — same resolution, very different results across products; judge by real captures. Misconception 2: "faster detection speed is better". Fast checks and slow scans serve different purposes: 1–120km/h covers fast checks; key vehicles can pass slowly for finer images.
Misconception 3: "IP68 means forever". The rating covers dust and water; prolonged submersion and strong acid/alkali environments still need avoidance — inspect seals during rainy seasons. Misconception 4: "100T load means anything goes". Load refers to static bearing; heavy repeated traffic still requires periodic checks of the road surface and scanner anchoring. Understanding these boundaries is the basis of proper use and maintenance.
11. Industry practice: deployment lessons from case studies
Airport access-point cases teach us: the inspection process must be closed-loop (entry check, exit record, personnel lane all connected) — single devices cannot fix process problems. Prison entrance cases show: physical interception and inspection must link (road blockers normally closed, release only after inspection passes) — wrong order means failed protection. Border checkpoint cases prove: standardized templates (point plans, wiring diagrams, commissioning checklists) dramatically compress batch deployment time and later maintenance costs.
Whatever the industry, successful deployments share three commonalities: survey first, process design, and acceptance records. Nail these three and an under-vehicle inspection system becomes a "working line of defense", not just "purchased equipment".
12. Question checklist before purchase
Prepare a checklist and confirm item by item: is the product MPS crash-test certified (request the certification file)? How are resolution and detectable object size verified on site? Does IP68 and the operating temperature range cover local climate? Are loop trigger and plate recognition linkage standard? What are the data storage and export formats? What does networking to a management platform cost? Warranty, response times and spare-part support? Is later AI upgrade supported?
Watch for vague phrasing in vendor answers ("approximately", "case by case") — require written commitments in the contract. Only after every checklist item has a clear answer should price negotiations begin, avoiding post-purchase discoveries of missing features and upgrade costs.
