1. The prerequisite: drone detection technology
Spectrum detection finds targets by receiving radio signals between drones and their controllers, identifying brand, model and pilot location. It transmits nothing and is covert — but cannot detect silent-flying drones. Radar actively transmits waves and reads echoes, finding silent and modified targets — at higher cost. Electro-optical turrets (visible + thermal) provide visual confirmation and tracking.
The combination is the standard perception layer of low-altitude defense: radar for wide-area discovery, spectrum for identification, EO for confirmation and tracking.
Sensor technologies compared: what each detection layer can and cannot see
Every drone detection technology answers a different question, and each one has a blind spot that another sensor covers. This is why a single-sensor “drone detector” produces either missed targets or constant false alarms, and why serious low-altitude defense is specified as a stack.
| Technology | What it detects | What it cannot do | Role in a layered system |
|---|---|---|---|
| RF / spectrum detection | The radio link between drone and controller — the 2.4 GHz and 5.8 GHz bands that most consumer and commercial drones use for control and video. Reported output includes brand, model and, with direction finding, the bearing to the pilot. It transmits nothing, so it is covert. | Cannot see a drone flying a pre-programmed route with its radio silent, and cannot confirm what the aircraft is carrying. | Primary detection layer wherever the threat is a drone flown by an operator. |
| Radar | Actively transmits and reads echoes, so it finds RF-silent and modified airframes, hovering and autonomous flight. Micro-Doppler processing separates rotor signature from a bird, which is what keeps nuisance alarms down. | Needs line of sight; ground clutter and low-altitude urban canyons cut its range. It does not locate the pilot and reports no model information. | Wide-area discovery and continuous track — alongside RF, not instead of it. |
| EO/IR camera (visible + thermal) | Visual and thermal confirmation of the aircraft, its payload and its flight path, day and night; AI classification raises identification accuracy. | Cannot search the whole sky unaided — it must be cued by radar or RF. Rain, fog and low-contrast backgrounds degrade it. | Identification, visual confirmation and evidence for the record. |
| Acoustic sensor array | Rotor noise in the near field, including a drone with no radio emission and no radar-visible return in ground clutter. | Short range, and urban noise masks it; it identifies neither model nor pilot. | Close-in gap-filler around a fixed asset, not a perimeter-wide solution. |

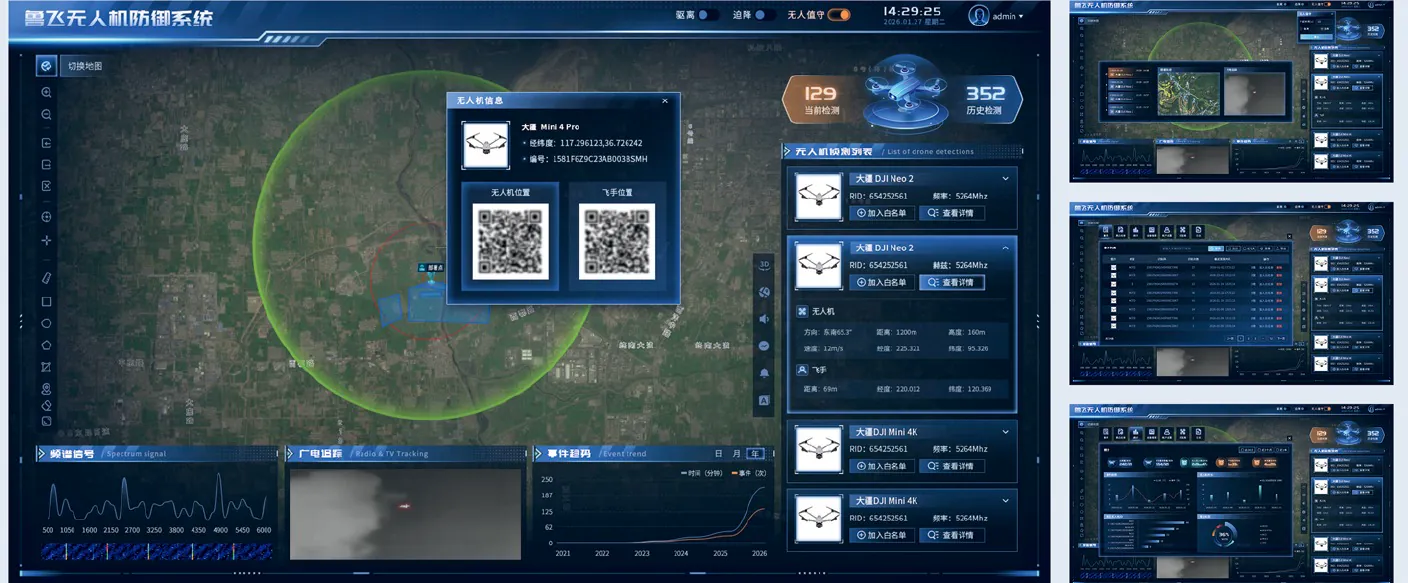

| Command and control / sensor fusion | Correlates all of the above into one track and one alarm, so an operator does not have to judge four unrelated events. | Without fusion, every sensor raises its own event and the guard suffers alarm fatigue. | The layer that turns four technologies into one system, and the one to ask about in a tender. |
Detection is also not mitigation. The stack above answers what is in the air, where it is going and where the pilot is; jamming, navigation spoofing and hard-kill are separate layers with their own legal constraints. When you compare suppliers, ask three questions: which sensors are genuinely fused, what the false-alarm rate is on a site like yours, and what happens at night or in rain when the EO/IR layer is degraded. See the drone detection radar specification for the radar layer, and the drone jammer buying guide for the response layers.
Detection range and coverage: the published figures behind each layer
The table above explains what each drone detection technology can and cannot see. This one adds the other half of the buying decision — the numbers, taken from our own published product specifications, so you can see how far each layer reaches, on what target, and under what conditions.
| Detection layer | Published figures | Conditions those figures assume | What it means at a site |
|---|---|---|---|
| RF / spectrum detection | Detection frequency 20 MHz–6 GHz; detection range ≥5 km; 360° detection angle; positioning accuracy TDOA ≤20 m, spectrum analysis ≤5 m | An open environment and a drone whose control or video link is transmitting; usable range falls with spectrum congestion and with the drone model | The identification layer: it reports brand, model and, with direction finding, the bearing to the pilot. It sees nothing from a radio-silent drone, so it is never the only layer. |
| Radar (X / Ku dual band) | Detection range 5 km at RCS 0.01 m²; blind zone ≤200 m; azimuth −45°~45° (X band) / 0°~360° (Ku band); elevation 0°~45°; velocity 1–100 m/s; search accuracy <10 m in range and <0.6° in azimuth and elevation; power consumption ≤450 W | A target with a 0.01 m² radar cross-section in the open; ground clutter and low-altitude urban canyons cut the usable range, and the near-field blind zone is the reason radar is fused with other layers | The wide-area layer that finds RF-silent, hovering and modified airframes. It does not report the model, and it does not locate the pilot. |

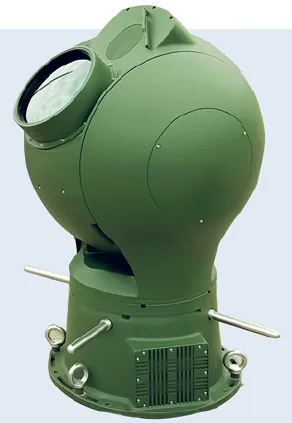

| EO / IR tracking turret | Tracking range >2 km with visible and thermal cameras, slewed to a track supplied by radar or RF | Clear line of sight; rain, fog and low-contrast backgrounds degrade the image even at shorter distances | The confirmation layer: visual evidence and payload assessment. It is cued, not searched with — a camera alone cannot sweep the whole sky. |
| Integrated fixed system | Detection radius ≥7.5 km; identification range ≥5 km; horizontal 360°, elevation +90°~−90°; ≥60 simultaneous targets; detection success rate ≥99%; detection-to-response ≤2 s; 24 h continuous operation; protection rating ≥IP66 | Open-area detection envelope; urban performance is lower because of obstruction and congestion. Detection radius and identification range are two different numbers on purpose. | The system-level numbers to put into a tender, and the reason detection range, identification range and response time should be specified separately. |
| Countermeasure layer (jamming, spoofing, laser) | 8 jamming bands from 800 MHz to 6 GHz at 50 W per channel; jamming radius ≤3 km in the open and ≤1 km in urban conditions; spoofing radius 500–1,000 m adjustable with activation ≤10 s; laser destruction range 1,500 m in under 10 s at 3–10 kW | Open-area jamming radius; the urban figure is the one most sites actually get. Effect also depends on which band the target drone uses. | Ask which bands the drones you expect to see are using, and what the minimum stand-off distance is at your site — the open-area figure is the optimistic case. |
Every figure above is a published specification, not a guarantee for your site. Detection and identification ranges move with the target’s radar cross-section, the weather, ground clutter and how congested the spectrum is, and an urban jamming radius can be a third of the open-area number once buildings are between the unit and the drone. That is why the acceptance test described in section 10 uses designated drone models at designated distances instead of a brochure figure: ask for the test report of the model you are specifying, and check the radar layer against the drone detection radar specification and the response layers against the drone jammer buying guide.
2. Electromagnetic jamming: the mainstream response
Electromagnetic jamming transmits same-band suppression signals, cutting the communication links between drone, controller and satellites — forcing return, landing or hover. Mainstream equipment covers 400MHz–6GHz, handling 95%+ of drones on the market.

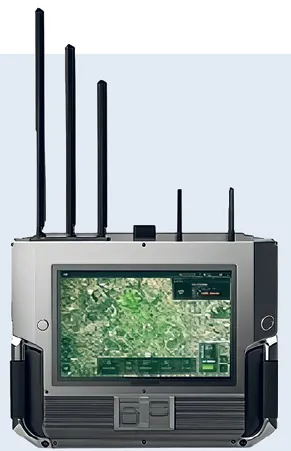

Portable jamming guns suit single-operator mobile response; fixed integrated systems suit 7×24 unattended coverage of key areas; backpack units suit mobile deployment in complex terrain.
3. Navigation spoofing: silent control technology
Navigation spoofing emits fake signals identical to in-orbit navigation satellites, invading the drone's navigation system to enforce no-fly zones, area denial and directional deterrence — without electromagnetic suppression noise and without affecting surrounding electronics. Effective against navigation-equipped drones (99% of the market), commonly combined with jamming.
4. Laser countermeasures: hard-kill capability
Laser countermeasures destroy or deter drones with high-energy beams — pinpoint engagement, no collateral damage, consecutive multi-target handling. A domestic 2kW air-cooled laser destroys a drone at 300m in 10 seconds, and extends to airport bird deterrence and illegal balloon disposal.
Lasers are hard-kill means; use must strictly follow regulations and standards, typically positioned as the upgrade option beyond electromagnetic jamming.
5. Assembling a complete defense system
A complete system is layered by "perception—decision—response": the perception layer (radar + spectrum + EO) detects and identifies; the decision layer (AI threat assessment) judges risk; the response layer (jamming + spoofing + laser) engages by level; all data flows into the low-altitude defense management platform for unified dispatch.
Build path: perception first, response second — start with spectrum detection for baseline defense, then layer radar, EO and laser, and finally achieve integrated defense capability.
6. Key performance indicators for low-altitude defense
Detection indicators: band coverage (70MHz–6GHz full band preferred), detection range (≥3km), simultaneous targets (≥50), response time (≤3s), positioning accuracy (TDOA networking ≤20m). Countermeasure indicators: jamming band count (8 bands covering mainstream models), jamming range (≥2km open), transmit power (50W-per-channel class), response modes (return/land/hover selectable).
Spoofing indicators: navigation systems covered (GPS/GLONASS/BDS/Galileo four modes), spoofing radius (500–1000m adjustable), activation time (≤10s). Verify each indicator and its test method at selection — beware inflated specs: jamming and detection ranges depend heavily on environment and drone model; rely on manufacturer test reports and live demonstrations.
7. Deployment scenarios and equipment form selection
Airport airspace: fixed detection + spoofing first, with caution on active jamming (protect airport electromagnetic environment and navigation), plus EO turrets for verification evidence. Prison perimeters: fixed integrated systems on 7×24 duty, with radar to cover blind spots. Major events: portable guns issued to patrols, fixed systems in the core zone, withdrawn after the event. Borders and mountains: backpack units for mobile deployment to cover fixed-post gaps.
Form logic: fixed emphasizes coverage and duty, portable emphasizes mobility and response, vehicle-mounted emphasizes rapid relocation; multi-form combinations create point-line-area defense depth. Budget planning: "perception first, response gradually" — ensure you can see first, then progressively build response capability.
8. Detection range by deployment form: fixed, vehicle-mounted and portable
A published "5 km detection" number belongs to a sensor head on an open site — it does not belong to a vehicle. What changes between deployment forms is not the sensor figure but the duty, the power, and how the response layer travels with it. This is the comparison most vehicle-mounted tenders actually need, because a moving platform trades coverage for mobility.
- Fixed integrated system (permanent perimeter): detection radius ≥7.5 km and identification range ≥5 km (open area), 360° horizontal, ≥60 simultaneous targets, detection success ≥99%, detection-to-response ≤2 s, ≥IP66, 24 h continuous duty. This is the only form that delivers sustained all-round coverage, because the heads never move.
- Vehicle-mounted: the radar/RF head and the EO turret travel with the vehicle, so coverage follows the patrol route instead of sitting on a mast. The head carries the same published figures as the fixed layer — radar 5 km at 0.01 m² RCS, RF detection ≥5 km, EO tracking >2 km — but a single vehicle usually carries one detection head plus one response unit, so sustained 360° cover needs the vehicle stationary. That is the honest reading of "5 km detection on a vehicle": 5 km is the sensor envelope, not the moving vehicle's watch radius.
- Portable and backpack: one operator, 8 jamming bands from 800 MHz to 6 GHz at 50 W per channel, jamming radius ≤3 km in the open and ≤1 km in urban conditions, backpack deployment in complex terrain. Correct for gap-filling and mobile response; not a substitute for area surveillance.
9. Compliance and project acceptance
Counter-drone equipment involves radio management and directed-energy equipment control: procurement and use must comply with regulations such as the Radio Administration Regulations of the PRC; jamming equipment requires the relevant permits; laser equipment must follow safety standards with warning zones; classified-site deployment requires confidentiality review.
Acceptance essentials: verify models and quantities per contract; test detection sensitivity per unit (designated models, designated distances); measure networking positioning accuracy (TDOA cross-validation); verify response effects (drone return/landing after jamming); accept the management platform feature by feature; hand over documents (test reports, user manuals, training records).
10. Dealing with swarm and coordinated threats
As drone technology spreads, "single-drone harassment" is escalating to "swarm saturation attacks": formations of low-cost FPV drones breaching defenses challenge single response channels. Responses: 1) increase parallel detection capacity (≥50 simultaneous targets); 2) parallel multi-means response (jamming + spoofing + laser per channel); 3) networked coordination — shared multi-site information, automatic allocation of response resources by threat direction.
Add swarm-scenario testing to procurement evaluation: simulate 5–10 simultaneous intrusions and verify concurrent handling and platform dispatch. A system truly capable of swarm defense is worth far more than the sum of single-unit capabilities.
11. Test verification: paper specs cannot beat on-site measurement
Countermeasure performance is heavily environment-dependent; paper specs are reference only — measure on site: detection range tests (open/urban/rain-fog scenarios), jamming effectiveness (target-model return/landing behavior), spoofing effectiveness (no-fly zone/deterrence), networking positioning (multi-station cross-validation).
Testing advice: choose sites similar to the deployment environment; use designated test models (covering DJI, FPV and other representative types); record complete data (distance, time, result) with both parties' signatures. Acceptance likewise relies on measured results — avoid the "great demo, poor reality" gap.
12. Industry trends and forward-looking selection
Low-altitude security is moving from "single devices" to "system of systems": airports, prisons and key facilities are building low-altitude defense systems with multi-device networking and multi-means fusion as standard; AI is moving threat assessment from manual judgment to millisecond automatic decisions; portable devices are evolving toward "detect-and-engage-in-one, single-operator systems", with one-unit closed-loop control becoming the trend.
Forward-looking advice: prioritize products with open interfaces, networking and platform access to avoid device islands; assess vendor AI capability and algorithm iteration speed; for build-out periods of 3+ years, phased procurement with reserved expansion is safer than one-shot purchases. Low-altitude defense is continuous confrontation, not a one-time purchase.
13. Maintenance and periodic testing
Counter-drone equipment mostly runs 7×24 outdoors: clean antennas and cooling parts regularly; check seals and fasteners; verify detection sensitivity and jamming effectiveness quarterly (with test targets); update software and frequency libraries regularly (model libraries must follow new market models); monitor operation logs and handle anomalies promptly.
Testing: annual third-party or vendor performance re-testing with reports; for networked systems, verify inter-site sync and data links periodically; laser equipment checks optical path and power per safety standards. Maintenance and test records are the evidence chain of system reliability — and required material for acceptance and audits.
