Perimeter Security

Security Mesh Fence

Hot-dip galvanized + electrostatic dual anti-corrosion, with concertina razor wire

Security Mesh Fence

Hot-dip galvanized + electrostatic dual anti-corrosion, with concertina razor wire

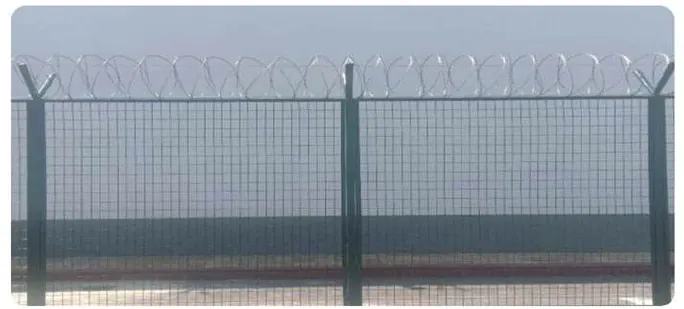

The steel mesh wall uses Y-post and steel frame structure: 5.0mm wire frame, 50×50mm mesh, topped with concertina razor wire — anti-climbing and anti-cutting, the standard perimeter solution for prisons, airports and substations.

All components receive hot-dip galvanizing + electrostatic painting dual anti-corrosion treatment for long outdoor life and low maintenance; height and styles customizable per security level.

Applications: Prisons & Detention
Applications: Airport Clear Zones
Applications: Substations
Applications: Military Facilities

Request a Quote WhatsApp Us

sales@cantonmade.com · +86 139 2270 2227 · Reply within 24 hours

Key Features

Core Advantages

5.0mm wire frame, 50×50mm mesh, strong and durable

Y-post design, stable and impact-resistant

Concertina razor wire, anti-climb and anti-cut

Hot-dip galvanizing + electrostatic dual anti-corrosion

Anti-theft bolts + rain caps as standard

Customizable height/styles per security level

Specifications

Technical Parameters

Frame	5.0mm wire; 50×50mm mesh; 20×40mm border; galvanized + painted
Post	Y-post 60×60mm; 2500mm above ground; V-bracket 600×600mm razor wire
Y-Bracket	60×60mm; galvanized + powder coated
Flange	200×200×10mm (customizable), galvanized + coated
Fittings	40×40 ears; M8×25 anti-theft bolts; 60×60×1.5mm rain caps; 3.0mm stainless wire

* Typical parameters listed above; final specs are customized per project.

Applications

Where to Use

Prisons & Detention Airport Clear Zones Substations Military Facilities Chemical Parks Port Supervision Zones

FAQ

1. Can the wall height be customized?

Yes. Standard 2500mm above ground; height, razor wire specs and post spacing customizable per security level.

Products in This Series

Perimeter Security

Electric Fence (High Voltage)

GB-25287-2023 compliant, 6kV–12kV high-voltage deterrence — the last perimeter barrier

Explore

Perimeter Security

Life Detection System

Detects human presence in 15 seconds — passive, harmless, ideal for interception

Explore

Perimeter Security

Automatic Sliding Gate

Aluminum/stainless steel, smart remote control, park entrance management

Explore

Buying Guide

Steel Mesh Walls: Material and Installation Essentials for Perimeter Fencing

Steel mesh walls form the physical base layer of perimeter protection — anti-corrosion, structural strength and razor wire configuration determine long-term effectiveness.

01Anti-corrosion determines lifespan

Hot-dip galvanizing + electrostatic painting is the standard for outdoor fencing. All SECUGUARD components receive dual treatment — salt-spray and chemical resistant, far outlasting ordinary powder-coated products.

02Combination with electronic fencing

Steel walls provide "physical blocking"; electronic fences/high-voltage grids provide "detection and alarm" — together a "block + alarm" dual guarantee, standard for prisons and airports.

Request a Quote Read More Industry Articles

Factory Direct

Why Buy Security Mesh Fence from a China Manufacturer?

As a professional Security Mesh Fence manufacturer and supplier in China, SECUGUARD offers factory-direct prices, wholesale options, OEM/ODM customization and complete export service. Contact us for the latest price list, technical datasheets and free samples.

OEM/ODM customization: your logo, color and packaging
CE, FCC, GB15210 certified with 12-month warranty
Factory price + wholesale discount for distributors
Door-to-door logistics with export documents support
